Katella Anaheim Concrete takes a frontage walk out in whole panels, puts it back to the city's own Standard Detail 113-1, and holds the Public Works permit and the inspection in our name rather than yours.
5.0 Stars Rated by Anaheim customers · Google, Facebook and the BBB
What the city publishes
Streets and Highways Code section 5610 puts the footway fronting a property on whoever owns that property. That is state law, not a rule this city wrote. What Anaheim publishes beside it is project work rather than a repair you can book: Sidewalk Gap Closures running citywide, and a Neighborhood Improvement Program worked one neighborhood at a time, Baker and Monterey under way with Hilda and Tonia listed behind them. No form on the city site takes a report of a cracked panel.
One thing the city does invite you to report is the tree. Anaheim trims 6,000 of them a year under street tree maintenance, district by district across a grid laid over the map, and asks to hear through Anaheim Anytime or on (714) 765-6860 when a tree is impacting a sidewalk. Make that call before ours. Trimming settles nothing under the concrete, but it puts your address on record with the people who own the tree.
Omar Espinoza has poured in this city since 2016 and spent 22 years on other crews before that, and he reads a frontage from the drive approach to the far property line before a figure is written. Past the line the work belongs to Public Works: the permit is applied for and the inspection booked through the city's own Anaheim NEXT portal, on our C-8 rather than on your name. We carry liability insurance on every job while the crew is on the street.
Past patching
On the flat half of the city a bad panel drops rather than rises. The wash sand beneath has no cohesion, so water tracking the edge carries it away and leaves the slab bridging a void. It rings hollow underfoot and the joint at the low end opens. Grinding achieves nothing here.
The city's own street tree palette is sorted by grow space, and the narrowest band it plants into is three feet. Where a mature trunk stands in a strip that width, the surface roots have one direction to go and it is under your walk. A lifted edge and a step at the joint follow.
Up the canyon the mapped ground is Alo clay, and it rates 9.3 for linear extensibility, which is as high as shrink-swell gets. A panel over it rises as the profile takes up winter water and settles back by late summer. A step that moves with the season is ground, not concrete.
Where the walk crosses a drive it carries wheel loads the rest of the run never sees. On sand that has migrated at the gutter end the support goes first at that corner, and the concrete answers with a spider of cracks rather than one clean line. A panel in pieces holds nothing.
On every frontage
Eight lines carried on any run we lift, all of them inside the written figure. Not all of them are ours to choose, the section and the finish answer to the city's adopted details, and the inspection is booked before the pour rather than chased after it.
Width, thickness and cross fall come off the city's adopted detail for sidewalk and driveway replacement, so the new work matches its neighbors.
Removal follows the scored joints rather than the crack, because a patch inside a panel leaves two weak lines where there was one.
The Public Works application goes in on our license through the city portal, and the inspection is booked on the same record.
Any root thicker than an inch comes off square beyond the forms, the cut face is sealed, and ribbed barrier goes 24 inches down on the walk side.
Sand that has traveled out from under an edge is dug back to firm ground and made up in angular rock compacted in 4 inch lifts.
Full depth for the whole run, and the pour is finished in a single visit so no cold joint ends up sitting inside a panel.

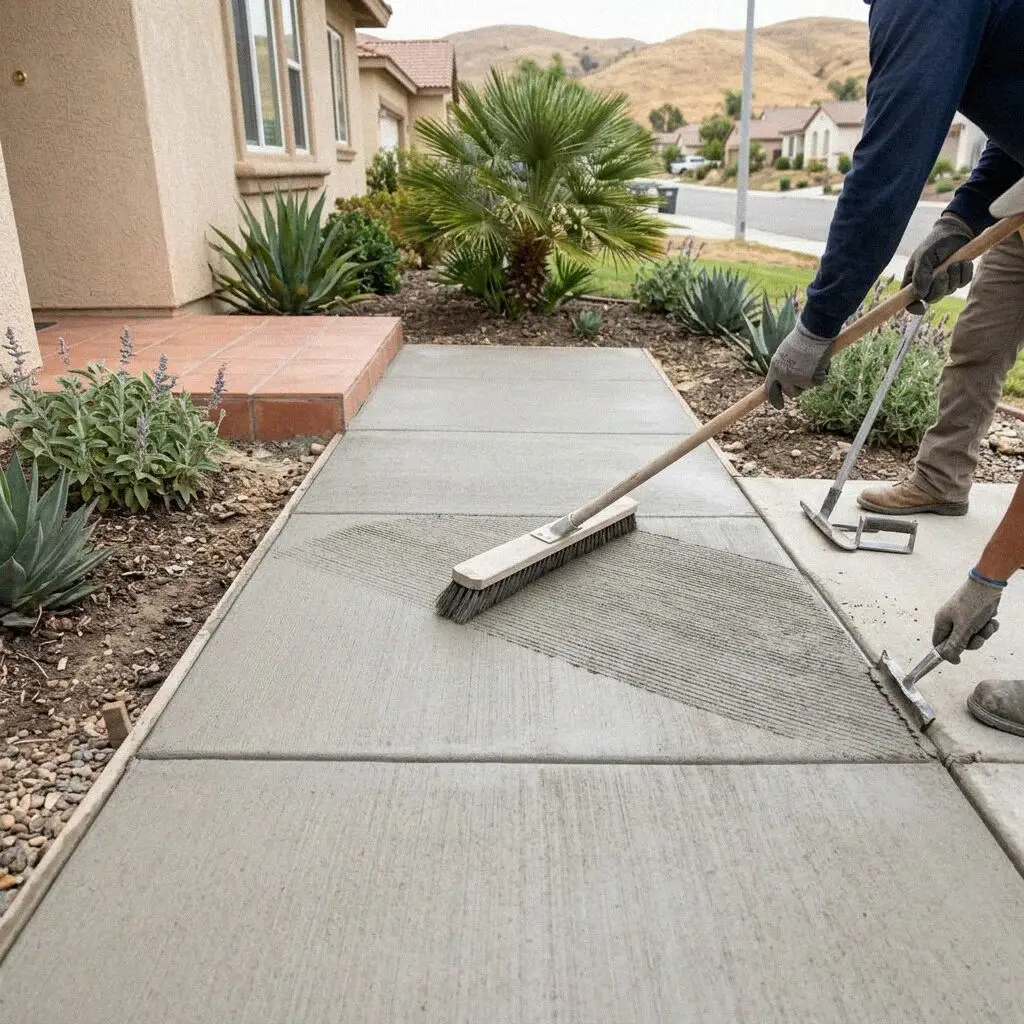

Texture is drawn across the walk rather than along it, and the edges and score lines are tooled while the surface is still open.
Turf, header board and sprinkler heads in the strip go back as they were found, and the tree is left standing where it stands.
Four answers
The concrete is only half the question. Because this city runs its walk work as capital projects rather than as a repair service, the comparison that matters sets what a phone call can achieve against what only a permit and a crew can.
| Option | Lasts | Fits when | Who acts | Time it takes |
|---|---|---|---|---|
| Run replaced now | 30 to 40 years | You want a date you choose | Us, on a Public Works permit | 1 to 2 days on site |
| Report the tree | Nothing under the slab | A city tree is lifting it | City, on its trimming grid | Days to a trim visit |
| Wait for a city project | 30 to 40 years | Your street is on the list | City, on its own schedule | Years, and no date given |
| Shave the lip | 1 to 2 years | A small step, nothing broken | Us, in a single visit | About an hour |
Reporting the tree and replacing the walk are not alternatives. One deals with what lifted the panel, the other with the panel itself.
Two grounds
A frontage walk in this city goes wrong in one of two directions, and which one it takes is decided before anyone pours anything, by where in Anaheim you happen to stand.
West of the freeway and across the old colony grid, the map unit under a frontage is Metz loamy sand out toward Beach Boulevard and San Emigdio fine sandy loam through the middle of the city, close to 70 percent sand against 13 percent clay. Linear extensibility runs about 1.2, so this ground barely swells. What it does instead is travel. It holds no cut face, and irrigation running along a joint carries it out from beneath the edge until the panel spans air and drops.
East of Imperial Highway the mechanism inverts. The canyon pads are mapped Alo clay, half clay by weight, and it rates 9.3 for linear extensibility, the profile genuinely changes volume between a wet February and a dry September. Concrete does not, so the walk is lifted and set down twice a year until a joint steps. Depth and joint layout are what absorb that, which is why the Portland Cement Association ties saw spacing to slab thickness rather than to a fixed distance.
First call to sign-off
One crew works it from the opening straightedge to the city sign-off. We apply for the permit in our own name and keep it, and no concrete is broken out until the Public Works record is open against your address.
Omar Espinoza runs a straightedge over every step and dip, counts the panels either side, and measures how wide the planted strip is.
We settle where your line sits against the right of way, then apply through the Public Works portal with the exhibit and the license attached.
Concrete comes away on the score joints, washed or settled ground is dug out to something firm, and any root under the line is dealt with.
Angular rock goes in compacted in lifts, forms are set off the curb to the city detail, then concrete is placed, finished and jointed the same day.
The city inspection closes the record, the cure runs its seven days, and the planted strip is put back before the truck leaves your street.
What moves the number
Panel count sets the floor and the rest hangs off it. Time is added by whatever stands in the strip beside the concrete, by what the ends of the run have to meet, and by keeping people past the forms safely. Every estimate is measured and written on site.
Two panels is a morning. A whole frontage becomes a second day, a longer work zone and a marked route for everybody walking through it.
Where a trunk stands in the parkway the dig goes deeper, roots are cut and barriered, and the forms have to be set out around what the city owns.
A corner ramp is its own detail: truncated domes at the city's dimensions, dark gray, beveled at the edges, set out before concrete goes in.
A run crossing a drive approach has to finish flush with the apron, and that apron answers to a city detail of its own.
There is no charge for the visit and the number is left with you in writing. Establishing what is inside your line and what is the city's is part of it, not an extra. (657) 220-6196 or send us a message.
Ask for a visit and somebody rings you back within 1 business day. Nobody prices a frontage down a telephone: a man comes out, counts what has moved, settles which side of the property line it sits on and leaves the figure in writing.
Reviewed by owners
Three frontages on three sides of the city: one dropped over wash sand, one lifted by a tree in a narrow strip, and one broken where the drive crosses it.
“Two panels outside ours had sunk rather than lifted and rang hollow when you walked over them. They dug out about a foot of loose sand, brought rock in and packed it, then poured 90 feet back whole. The city inspector came and went the same morning. It has not moved since.”
“A carrotwood in a three foot strip had pushed four panels into a step my mother could not get her frame over. Katella rang the city about the tree with us, cut the roots back behind a barrier, and had the run flat in two days. The turf went back the way the gardener had it.”
“Where our walk crosses the drive it had broken into pieces and dropped away from the apron. They took the permit out themselves, brought both back to one grade and were finished inside two days. Nobody catches a wheel on it now and the paperwork was theirs, not mine.”
FAQ
Whose the walk is, what a call to the city actually gets you, which module issues the permit, what the new concrete has to match, and where the tree stands in all of it. Every answer here is for a frontage in this city, not for concrete at large.
To maintain, yes, by whoever owns the land behind it. Streets and Highways Code section 5610 puts that duty on the fronting owner across California, and this city publishes nothing that takes it back. Its walk work is capital work, Sidewalk Gap Closures, and a Neighborhood Improvement Program taken a neighborhood at a time, with no request route for one bad panel. Ring Public Works about your street first.
It asks to be told, and it owns the tree. Anaheim maintains the trees in public spaces, trimming 6,000 a year on a district grid, and its own instruction is to report through Anaheim Anytime or on (714) 765-6860 any tree that is impacting a sidewalk. What that gets you is a trim or an assessment, not new concrete. The two jobs run separately, so make the call and then have the panels dealt with.
Public Works, on its own portal. Anaheim runs its permitting as separate modules, and the building one on (714) 765-5153 covers structural work inside your boundary rather than concrete in the right of way. A frontage walk, the parkway and the drive approach sit past that line, so the application and the inspection are booked against a Public Works record. We file on our license and stand for the inspection.
The city's adopted details, which are public. Section 1 of the Anaheim standard plans, revised November 2023, carries the sidewalk and driveway replacement detail numbered 113-1 along with the curb and sidewalk joint detail and the residential approach. Width, thickness, jointing and the ramp dimensions all come off those sheets. Questions on them go to Public Works Engineering on (714) 765-5176.
No, and patching one is how a frontage ends up worse. Concrete is scored into panels so that shrinkage lands on the joints, and cutting a new line inside one leaves two weak places where there was one. We take out whole panels on the existing joints. It is also why a run of four moving together is priced as four rather than as the worst one, since the neighbors are already going the same way.
A short length takes one working day and a full frontage two. Then the cure: nobody steps on it for 24 hours, and bins, bicycles and pushchairs stay off for seven days, which on a school route is worth planning around rather than discovering. A signposted way past the forms stands the whole time, and the parkway is reinstated before the crew clears your street.
The layout changes, not the mix. On canyon ground the clay swells and shrinks by season, so joints are cut closer and the run is bedded on imported rock rather than straight onto the native profile, which gives the movement somewhere to go. Where the walk crosses a graded pad we joint over the line between cut and fill instead of on an even spacing. On the flat the base is the argument and the joints are routine.
Yes, and written on the sheet rather than agreed at the curb. What stands behind it is a written workmanship guarantee against defects in how it was built. That reaches the depth, the bed under the concrete and where the joints fell, none of which can be inspected once the run is finished. A tree planted afterward, or a lorry parked across the panels, sits outside it.
Where we work
The eight towns nearest the yard on West Katella, closest first. Every one of them adopts its own street standards and staffs its own right of way counter, and both get checked before we put a figure on anything.
Four jobs that cost less to add now than to call anybody back for, because the permit is already open and the mixer is already on your street. Each one is broken out on its own line.
The apron rebuilt so the drive and the walk finish flush.
A low wall keeping a canyon slope off the frontage, footed and drained.
The rear slab poured while the pump and the crew are on the street.
Color or a stamped texture on the private path from gate to door.
Send the address through the form or ring it in, and you hear from somebody within 1 business day. The visit costs nothing, the panels are counted on the ground, and the figure goes on paper before anything is decided.
